Overview
The Unreal Engine thinks of the entire Unreal world as solid matter when you start a new map. So before you do just about anything in UnrealEd, you'll need to make some space so you've got somewhere to place things. This is called subtracting, because we tell UnrealEd to remove a chunk of "solid" material and make a space within it. This tutorial shows you how to do this. The space you create can be a room, or a large outdoor space: that will all depend on how it is textured, decorated and lit later on.
Instructions
To create a space from scratch:
- If you need to start a fresh map, do UnrealEd Main Menu -> File -> New
The UnrealEd Interface has a set of buttons running down the left side of the screen. This is called the toolbox and is divided into several groups. In the 3rd group of buttons, find the top-left button of that group is a blue-green cube. (In UnrealEd 2 and later, each group can be collapsed, but normally this group is visible.) Right-click the cube button.
- This opens a floating window with a list of parameters for the Cube Brushbuilder. Type in the height, width and breadth you want for the space. You can use the mouse to select the fields or hit Tab to move the focus. The numbers are all in Unreal Units. We suggest:
- a room: 256x256x256
- a hall: 1024x1024x512
- outside space: at least 4096x4096x2048, depending on what you want to put in the area.
- keep in mind that an unreal pawn is rougly 198 units high.
- For more on using the parameters window, see Brushbuilders.
- Press "build". The UnrealEd Viewports should now show a red cube (in dotted red lines in versions earlier than UnrealEd 3).
- This step forges the red builder brush. It's a special object, which acts like a sort of 3D cursor or template (there's more than one way to visualize it). You should now see it as a red cube in the 3D viewport. To pan around the viewports, click the left mouse button in the viewing area and drag; for more on this see Camera Movement.

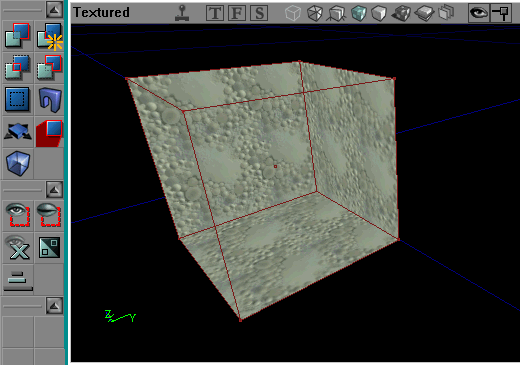

Find the 4th group of buttons in the toolbox. The top-right one's tooltip says "subtract". click it. A hollow space appears in the 3d viewport.
In more depth
This action has taken the current shape of the red builder brush, and used it as a template to create a real, subtractive brush in the world.
The other brushbuilder buttons create different basic shapes, for example the cylinder brushbuilder will create a circular room. Complete reference for these tools: Brushbuilders.
Related Topics
- Place A Light – Your recommended next step in the Mapping Lessons.
- UnrealEd Interface – a complete reference for UnrealEd's menus, windows and buttons.
- General Scale And Dimensions – compares Unreal Unit dimensions to real world scale
