Tahngarth: Here i will try to post a fairly comprehensive guide to the terrain tool, geared mostly to beginning mappers, but certainly useful to anyone. I will walk through creating a sample peice of terrain and describe how the tools are used to accomplish the task.

Terrain Building Features in UED 3.0

A lot of people probably look at a stock map in UT2003 such as DM-Antalus or DOM-SepukkuGorge and wonder, "how the heck do you make that terrain like that?" Well, hopefully by the bottom of this page, the how-to part will be less alien to you. In the top left toolbox of UED which contains the tools such as actor scaling, actor rotation, and face drag, you will see a shiny (if you're excited about this) button with a mountain on it. this is the Terrain Tool. Say good bye to the BSP Terrain button. Most of your work will be done in the perspective view, so you may want to make it larger when working with terrain.

The terrain tool is actually a collection of several more tools. When clicked, the terrain button opens a window containing all the functions you need to take an initially flat parcel of land, and 'paint' mountains or valleys on it, flatten them, create bumpy ground, paint textures on the surface, carve out holes to allow for tunnels and whatnot to connect to it, and scale and rotate those textures. The tool generates a heightmap as you edit, eliminating the need to import a texture into UnrealEd to add terrain to your level.

Creating Terrain and the TerrainInfo Actor

Some Terms:

heightmap

a greyscale texture used by Unrealed to generate terrain - black is low elevation, white is high elevation. it should be 64x64 pixels.

TerrainInfo

this is the actor that makes the terrain exist. The terrain is projected using this actor as the 3D origin. also contains the associated variables. must be within a zone that allows terrain to function (bTerrainZone=True)

Unrealed creates your terrain by generating a static mesh based on a heightmap texture, centered around a TerrainInfo actor. The TerrainInfo actor will be the XYZ origin of your terrain (i.e. the center) so keep that in mind when you place the terrain. You need to have empty space to put the terrain in, and then create the actor. That said, lets try it:

1. Use the CubeBuilder to build a cube with dimensions 4096x4096x4096. Center it over the origin and subtract. Pick a light colored texture for it, this will make the terrain editing easier.

1. Add an Actor >> Info >> ZoneInfo and position it within your new space.
2. Set the following properties for the ZoneInfo:
   • ZoneInfo -> bTerrainZone = True (otherwise your terrain won't show up)
   • ZoneLight -> AmbientLight – You may also want to temporairly set this to to 180 or so, so that you can see your terrain when you work on it. Set it back to 0 when you want to put more elaborate lighting on it.

1. Now click the Terrain Tool button in the top toolbox. it looks like this: [[Image:Legacy_TerrainIcon.gif|]] . This opens the Terrain Editing window. Youll want to position this window so the perspective view and XY view are reasonably visible.

1. The bottom half of the window has three tabs:

• Terrains – shows a list of all of the TerrainInfo actors in the level, and on the right side shows the heightmap and other information for the currently selected TerrainInfo; and allows you to add new TerrainInfos.
• Layers – shows the list of layers for the current Terrain selected on the Terrains tab. Layers contain the information about all the textures that are being used in the terrain. the list is hierarchal, with the base layer being shown first. the other layers are "painted" on top of each other in the order listed.
• Decorations- Allows you to add features to your terrain. Note: any decor you add here won't have any collsion (i.e. you can walk through them.) Only use this for things such as grass and such that shouldnt impede movement.

1. Click the New button on the Terrains tab to create a new TerrainInfo. This will open up the New Terrain window, where you set the following properties: (IMPORTANT-you only have one chance to alter the options here, and the UnrealEd Goblin can become upset when you delete TerrainInfo actors, beacuse the heightmap remains in the terrain editor(and your level) list even after deleting the actor, and there's no delete button in the Terrain Editing window. having UED collect its garbage should fix that(i think), but Let's keep the UED goblin happy. :) )

When you're satisfied with the values, click OK.

1. Now position the HeightInfo actor that appears in the level, and position it in the center of your cube.

   Great! Now we have some nice, completely invisible terrain. Before you can work on your terrain (or use the terrain generator) you need to define at least a base layer. Open up the texture browser and find the texture you want the majority of the terrain to look like. For our example, open the ArboreaTerrain package, and find and select Sand01AR. This is a plain dirt texture that makes a good base.
2. In the Terrain Editing window, click on the Layers tab, then click the New... button. This opens a window similar to the New Terrain button. Use Mylevel for the Package, and call the layer Dirt_Base or something similar so you know what it is. The other properties work as follows:

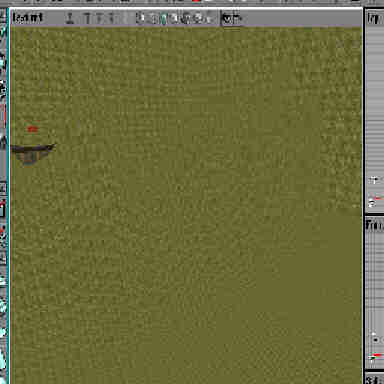

1. Hit OK and create the layer. At this point, you should set Realtime Preview on by clicking the little joystick in the perspective view. Base layer defined, rebuilding the map should cause your terrain's surface to appear. Do a full rebuild of the map.

Ta-Da! You now have a brand new, tottaly flat and barren parcel of dirt! Now, we will discuss how to turn this featureless plane into something more interesting first by using the terrain generator, and then by manually editing the surface with the terain editor's tools.

The Terrain Generator

Can't think of how you want your terrain to look? Want UnrealEd to give you something more interesting to start with? Use the terrain generator.

To use the terrain generator, click the Terrain Tool, and in the terrain editing box, select your terraininfo. Then look at the top of the terrain editing window, and you will see two tabs. The terrain generator is on the tab labled Misc. Just supply some parameters, and click Build. Instant mountains. The settings are as follows:

More on Layers

In order to vary the look of your terrain, you must add additional layers. Select any additonal textures you want, and when creating the layers, set the color settings to the exact opposite of the base layer, otherwise the base layer will show over all of the others rendering other layers invisible. Say you made some craggy peaks in the terrain you created above, and you want them to have a rocky surface different from the dirt texture used for the base layer. All you have to do is make a layer with the rocky texture, and then use the terrain tools to apply it to the surface. Let's look at these tools now.

The Paint Tool

This tool allows you to "paint" mountains and valleys on your terrain. This and all of the tools in the terrain editor have two functions, controlled by the left mouse button and the right. For the paint tool, using cntrl-left mouse button combination (hereafter LMB) raises the terrain height where you click in drag in the [3-D view], and using the cntrl-right mouse button combination (RMB) lowers it. If you find that a huge pillar skyrockets out of the ground where you click, just drag the Strength slider to the left to reduce the magnitude of the change.

Roland: But don't select a layer with a texture...if you do this, you paint the texture, not the height of the terrain...

Layering

To change the textures of terrain instead of having the same boring texture that doesn't look realistic for mountains or the like, open the terrain tool, click on the TerrainInfo you want to edit, and then click on the 'Layers'

tab. Before you do anything else, open up the Texture Browser and select a texture to be used as a new texture for (4 example) your new mountain you want to look realistic. Once done that, go back to the 'Terrain Editing Tool' and in the 'Layer' tab, click on the button called ' New '. A new window will open.

You'll see Package, Group, Name, Alpha Height, Alpha Width, Alpha fill, Color Fill, UScale and VScale. For Package, type in MyLevel. (which you should always type in if your doing Terrain or importing of textures or w/e) For 'Group', you can either leave it blank, or type in something like TerrainLayers. For Name, Type whatever you want, for example, Terrain1. If you are a beginner, I would leave the Alpha height and Width , and Alpha Fill alone. For color fill, I believe this is the color that will 'Fade' in to the other layers when you paint the texture on. This must be a different color for each layer. ( Ex- A layer's color fill cannot be the same as another layers color fill. Ie. Red-Red is wrong and Red-Blue will work great ;) )

U and VScale are how big the texture will be. I works exactly like the surface properties under the tab Pan/Rot/Scale.

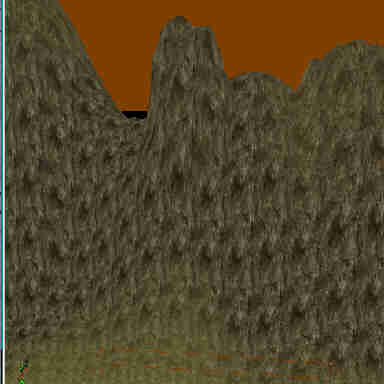

Finally, when you are satisfied with your new layer's settings, click 'Ok .' Now, there should be a new 'Layer' called Terrain1 (or w/e you called it under 'Name' ) Now click on the layer and then click on the 'Painting' tool under the 'Terrain Editing Tools' Menu. Now, on your terrain in your level. Use the paint controls ( CTR+LMB to erase the texture and CTR-RMB to add the texture, I believe ) on the area you want to change the texture to. depending on the 'Strength' you set, the texture will 'fade' in covering the older texture.

Vertex Edit Tool

Visibility Tool

At first look at this tool, I thought, "this is a useless tool, a tool that nobody will ever use." I've just found out what people use it for. However, I will just explain this tool and leave the implementation up to you, for now at least. What this tool does is change the area that you have used it on, from a solid surface, to a non-solid/invisible surface. CTRL-RMB makes it Invisible/Non-Solid and CTRL-LMB makes it Visible/Solid.

Pitfalls of Terrain Creation in Unreal 2's UnrealEd

For some reason, the creation of terrain has been made somewhat tricky, because the Terrain Editing palette is missing the ability to create TerrainInfo Actors by itself, and of course, a blank heightmap. My guess is that Legend fell behind on their updates! The UT2003 editor seems to be in better shape. Honestly :rolleyes:

This means that you have to manually create the TerrainInfo actor, and then set the heightmap in the TerrainInfo's properties (e.g. MyLevel.heightmaps.map1). The heightmap texture has to already exist, or you'll crash UnrealEd. Then you can make use of the Terrain Editing tools in the palette, as above.
