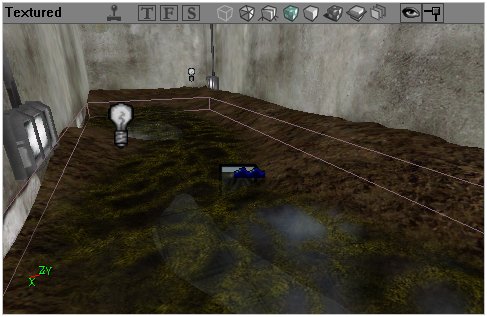

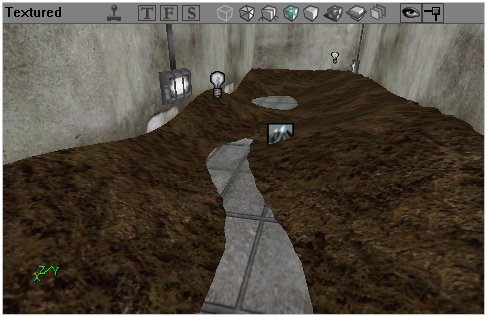

This tutorial will introduce you to the basics of FluidSurfaces. As you can see in the first screen shot, I've made a room with some dirt (see subtract a space), and I'd like to add a thin layer of water.
FYI: Since I (Freon) am french, the boolean values in the properties boxes are in french too. Vrai is for true and Faux is for false. Enjoy now :)
Adding a water volume

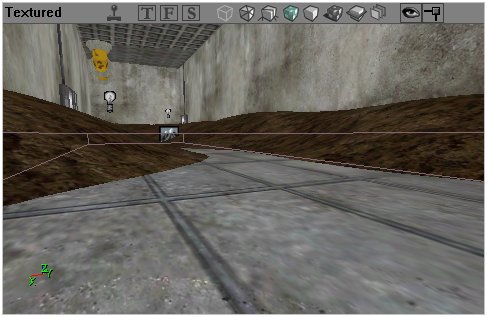

Add a volume: Resize your red builder brush to fit the size of the room you want to fill with water (or even a little more). Use the height to determine how deep the water will be. Place your red brush where the water should be and right click on the volume button [[Image:Legacy_volumebutton.jpeg|]] and choose WaterVolume. That's all you need for now.
Adding the surface
The water volume is invisible. You could use a simple sheet to make the surface visible, but it would be a little static and won't slosh around. Add an Actor >> Info >> FluidSurfaceInfo in the middle of your room, at the surface height.
- FluidSurfaceInfo -> FluidXSize and FluidYSize to fit the room size
- You can also use FluidGridSpacing to determine how big the grid should be.
See creating a material for info on how to create a shader material for your FluidSurface.
9. Open the FluidSurfaceInfo properties, click on Display -> Skins and click on the Add button. Then pick the shader you want applied to the surface with the textures browser.
You can adjust the values in the oscillator and the scalers especially the last one to fit the shores.
Don't forget setting bUnlit on False in the Display properties.
