This page lists new features for MeshMaker 1.1. If you have suggestions, add them under the Suggestions topic – I will review them and put them under any of the other topics as appropriate.

Also, if you have comments on anything on this page, please add them. (Use the handy ~~~ markup at the start of the paragraphs you add to include your user name.)


The Status shown at the end of each section is one of the following:

Implemented Finished, pre-beta-tested and ready to go.
Unfinished Implementation has begun, but isn't finished yet.
Concept Thought through and deemed feasible and worthwhile; about to be implemented.
Idea Nice-to-have without any further thoughts about feasibility and implementation details.

Fixes

Base Directory

MeshMaker doesn't take Unreal Tournament's base directory from the registry anymore if MeshMaker.exe is located in an Unreal engine game's directory structure. That way users with multiple installations of Unreal Tournament aren't stuck with the one they installed last anymore.

If MeshMaker.exe is located somewhere else, it still looks in the registry for the correct paths.

Status: Implemented

Package Directories

MeshMaker 1.0 checked the Paths entries in UnrealTournament.ini to determine the directories used for texture search. Some mods (total conversions like Tactical Ops and Infiltration) keep their texture packages (and other packages that are crossreferencing those texture packages) in completely different directories though which are specified in other .ini files (TacticalOps.ini, for instance).

To address that, MeshMaker now scans all .ini files in the System directory for Paths entries.

Status: Implemented

Texture Package Loading

While MeshMaker itself doesn't care about secondary packages referenced from texture packages (like footstep sounds in a separate .u file) when loading those packages, the compiler does and doesn't properly load those packages then – the result are meshes that come out unskinned.

The new version (apart from taking more package directories into account, see above) displays a warning message if the compiler stumbled over such a problem.

Status: Implemented

Texture Realignment

MeshMaker makes an effort to automatically realign textures whose alignment on the original prefab collides with the entirely different notion of skinning a mesh (the former uses origin and direction on the texture, the latter works by specifying an UV coordinate per vertex).

In the implementation of that, a small bug sneaked in so that, in rare cases, the "corrected" alignment wasn't as close to the original as possible (which still can be pretty far away from the intended alignment).

Status: Implemented

Vertex Coordinate Resolution

A small bug made MeshMaker 1.0 not use the full resolution of the limited coordinate space meshes reside in. In the new version, the vertex coordinate resolution is almost doubled.

Status: Implemented

Features

Language Localization

MeshMaker's user interface is completely localizable now; similar in functionality to UnrealScript's localization support, every string that appears in the user interface has a unique section and label and can be read from a language file. (If no file is found, the strings default to English.)

Such a localization file is a plain-text file with the extension .lang and looks like this:

  [FormMain]
  CheckBoxExportCollision=Kollisionshülle erstellen
  HeaderControlTextures(Texture)=Textur
  HeaderControlTextures(Package)=Paket
  HeaderControlTextures(Status)=Status
  LabelCaptionExportClass=Klasse:
  LabelCaptionExportPackage=Paket:
  LabelDescriptionDecoration1=Mit dieser Option wird MeshMaker automatisch ein Paket %s.u

MeshMaker automatically switches to your operating system's interface language if a localization for that language is available; that behavior can be overridden by a registry entry.

Status: Implemented
Available languages: English, German, French, Swedish, Dutch, (Spanish)

Deus Ex Support

Deus Ex uses an updated version of Unreal's mesh format, employing higher-resolution vertex coordinates. MeshMaker automatically determines whether it is run from a Deus Ex installation and converts meshes into that new format if appropriate.

Status: Implemented

Memorize Import Directory

For convenience, MeshMaker could memorize the directory of the last prefab imported (rather than using the Maps directory by default on each run).

Status: Concept

Embedded Textures

MeshMaker 1.0 always references textures in their original packages, unlike most other decorations which have those textures embedded in the .u files. The new version will provide an option to embed those textures in the .u file; maybe even to specify external bitmap files (.pcx, .bmp, .tga). (The latter was originally planned as part of .3ds support for MeshMaker, but I think I'm going to scratch that – it's a lot of hassle for a little worth.)

Status: Unfinished

LOD Processing Control

Decorations generated by MeshMaker used to have LOD processing switched off entirely; the reason for that is that prefab vertices can't be properly welded in many cases, which confuses the LOD processing algorithm and makes it create undesired gaps and holes.

An Advanced Options dialog box in MeshMaker could provide a slider bar for that setting, leaving it to users to determine how much distortion their prefabs/meshes can handle.

Status: Concept

Balanced Poly Segmentation

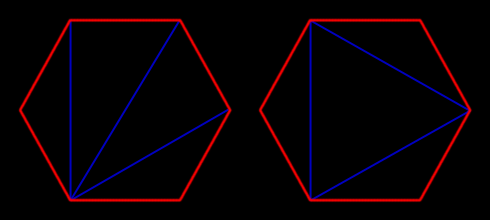

Legacy meshmaker-polysegmentation.gif

MeshMaker 1.0 splits polys in the way shown on the left side (the simplest possible approach), but since the way faces are arranged has an influence on how they're lit, the option on the right side might occasionally be desirable.

That could also be an option in that Advanced Options dialog.

Status: Concept

Grid Snapping

Something else for Advanced Options could be a checkbox controlling the bEdShouldSnap property of the finished decoration.

Status: Concept

Smart Resizing

MeshMaker has to convert the model from UnrealEd's world coordinate space to the rather coarsely discrete and pretty limited vertex coordinate space used for meshes. That leads to aliasing/quantization errors which can be visible in the finished mesh as small gaps between adjacent faces.

The feature I dubbed Smart Resizing would try to determine the optimal resizing factor to keep such quantization errors at a minimum. (Uh-huh, I know.)

Status: Idea

Smart Vertex Welding

As mentioned above, prefab vertices frequently can't be properly welded as it would be needed for effective LOD processing or to prevent aliasing effects from showing up as gaps between faces. Smart Vertex Welding would create additional mesh vertices (and, thus, additional faces) to be able to properly connect two faces if one of the first face's vertices lies on the second face's edge. (One more for Advanced Options.)

Status: Idea

Suggestions

Click "Edit text of this page" (below) and add suggestions here.

XepptizZ;When I made My first mesh the mesh's center wasn't what it was supposed to be.

       Even though the prefab had a center vertex( that little red point in the brush wich doesn't
       connect with the other points) placed in the middle.

Torn_Agressor: same problem as Xepptizz, it would be really useful if the meshes kept the same pivot location as the brush you imported, particularly for objects where you need them to pivot from a very specific point,

but meshmaker always places the pivot exactly in the center of the mesh :o
