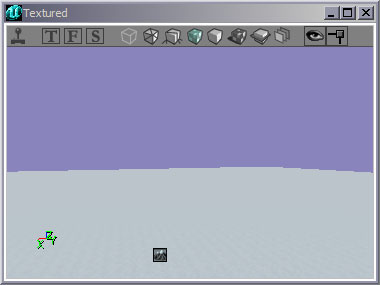

Sunlight has one tricky property which confounded me for about an hour making my first terrain. The light from a Sunlight will be blocked by the main subtracted brush itself unless you set its walls to Fake Backdrop. A fake backdrop is used in outdoor areas to make the skybox texture visible in the map. To set this property, click on a wall in the 3D preview window, then hit the Shift-B key combination to select all the faces of the brush. This is what that should look like in the 3D viewport.

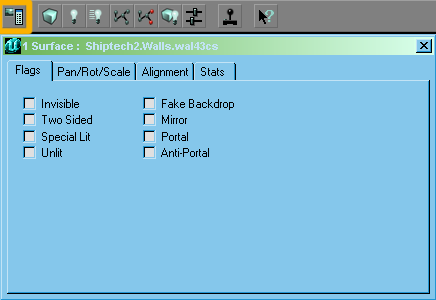

On the selected walls do Surface Context Menu -> Surface Properties, and in the surface properties window check the Fake Backdrop checkbox.
Adding the Sunlight

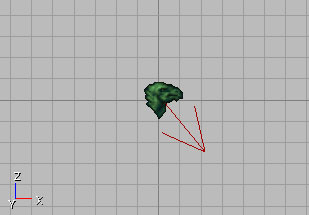

Add an Actor >> Light >> Sunlight to your level. I like to move it up near the top of the subtracted cube. You'll also want to rotate it so the arrow points in the direction you want the light to shine. Note: in later builds of UT2003, the "eagle-head" icon as seen below has been replaced by a yellow ball icon, to look like a sun. Don't let this throw you.

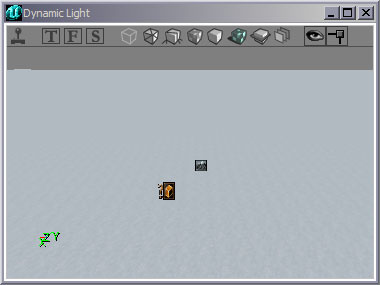

Now if you rebuild your level the terrain will be visible in the 3D viewport in Dynamic Lighting mode. The default settings for the Sunlight are a little dim, so you may want to increase the lighting brightness & play with the color if you want.
